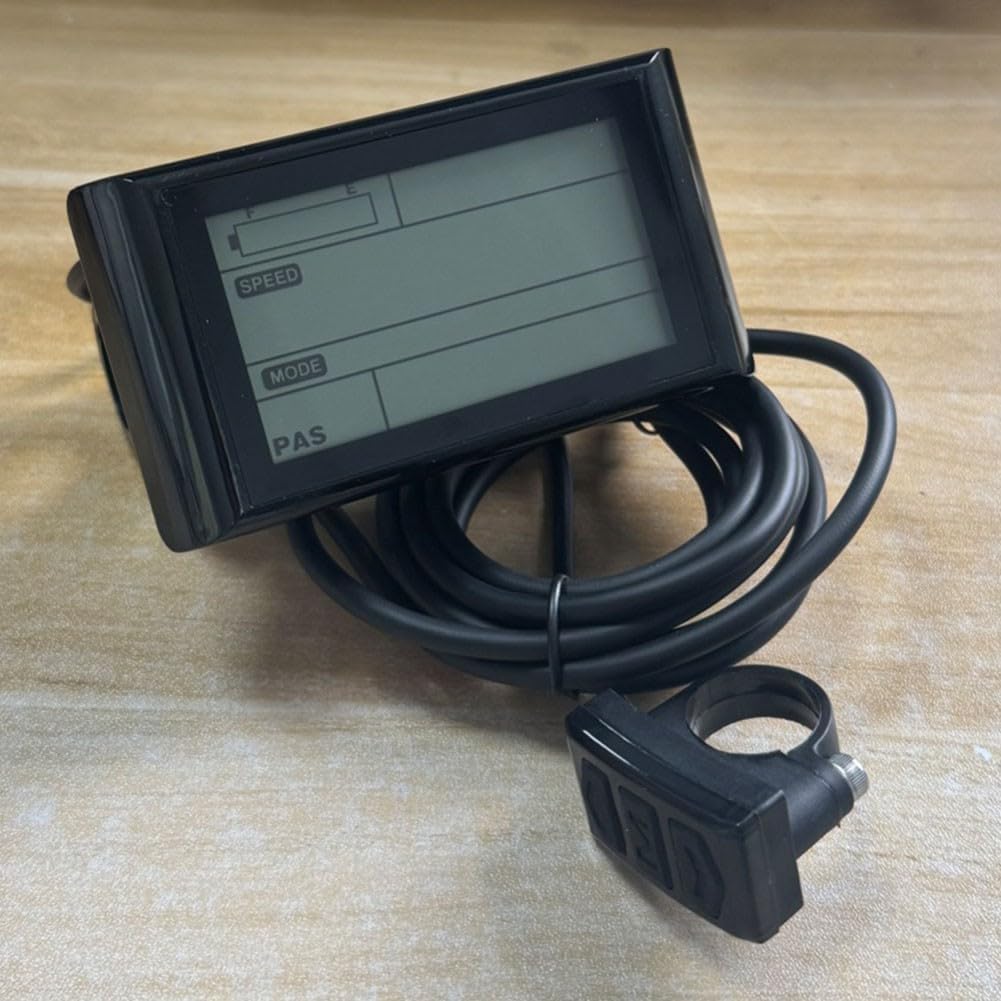

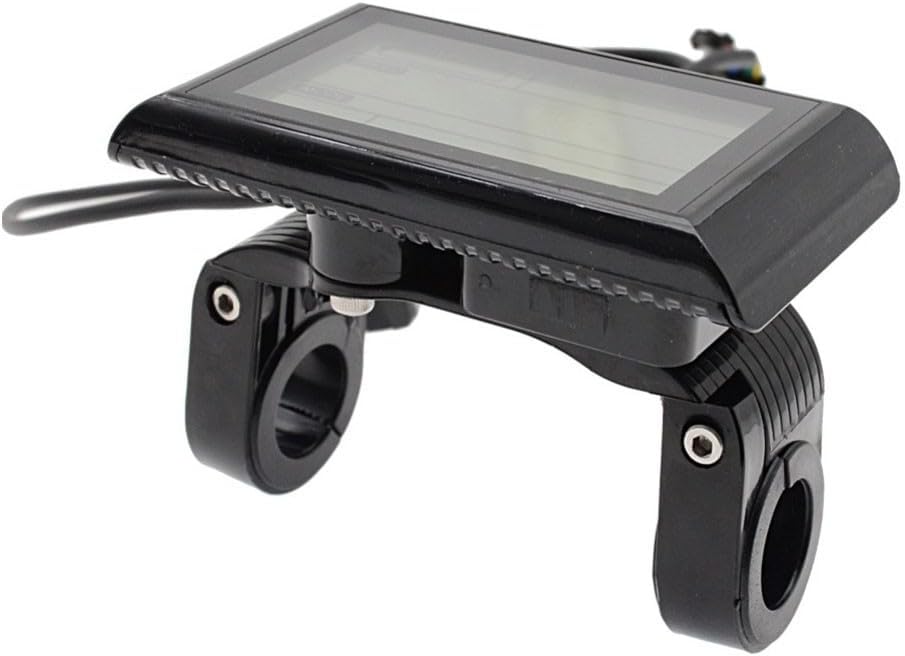

SW900 LCD Electric Bike Display 7-Pin Speedometer For Ebike Regulating Instrument For 24V/36V/48V E-Bikes Black

Feature:ABS shell, sturdy , can withstand temperatures as low as -20℃ It can be used normally at a temperature of 60℃.The LCD display instrument provides clear display and allows you to monitor all vehicle data at any time.High-temperature resistant wiring, simple connection operation, Diameter 2.2 cm, suitable for most bike handles available on the market.Support 24V/36V/48VSpecification:*Material:abs*Color: black (As Pictures Show)*product name： ebike display*size : approx 8 x 8.5 x 13.2 cmwire length：1.8meterRed line - Positive terminal of the power supplyBlack line - Negative terminal of power supplyYellow line communication transmission (TX) Green Line Communication ReceiveBlue line - Controller switch lockBrown line - Positive terminal of the headlightWhite wire bulb negative terminalLong press the up and down buttons on the instrument to enter the instrument settings.P01: Backlight brightness. Level 1 is the darkest, and level 3 is the brightest.P02: Mileage unit, 0: Kilometers; 1: Miles.P03: Voltage levels: 24V, 36V, 48V.P04: Sleep time: 0, no sleep; Other numbers represent sleep time, range: 1 - 60; unit: minutes.P05: PAS grade: 0, 3-level mode: 1st gear 2V, 2nd gear 3V, 3rd gear 4V. 1-5 gear mode: 1st gear 2V, 2nd gear 2.5V, 3rd gear 3V, 4th gear 3.5V, 5th gear 4V.P06: Wheel diameter: Unit, inch; : 0.1.P07: Speed sensor count: Range: 1 - 100.P08: Speed Limit: Range: 0 - 50 km/h. 50 indicates no limit.P09: 0-start and non-0-start settings, 0: 0start; 1: Non-0 start.P10: Drive mode setting 0: Assist drive (shift lever ineffective). Electric drive (via the handlebar, at this point the assist gear is ineffective). 2: Both power-driven and electric-driven systems coexist simultaneously.P11: Sensitivity setting range: 1 - 24.P12: Assist Startup Strength Setting Range: 0 - 5.P13: The types of assist magnetic steel are set to three options: 5, 8, or 12 magnetic steel pieces. Among them, 5 and 8 represent single Hall assist sensors. Set 12 to use dual Hall assist sensors.P14: Current Limiting of the Controller. The initial current is 12A. Range: 1 - 20A.P15: This function is not available at present.P16: ODO Reset Setting Press the up key for 5 seconds continuously to reset ODO.P17:0: Cruise is not allowed. 1: Cruise is permitted. Automatic cruise is an option (only applicable to Protocol 2).P18: Display speed range: 50% - 150%P19:0 Enable 0:0, 1:0P20:0:2 Protocol 1: 5 S Protocol 2: Standby 3: Standby Package content:1x display

• [ALL-IN-ONE PACKAGE] - Includes 1x SW900 NO 2protocol LCD display with a sturdy ABS shell and a 7-pin connector for quick and secure installation on most e-bikes.
• [COMPATIBLE WITH MULTIPLE VOLTAGES] - Designed to work seamlessly with 24V, 36V, and 48V power systems, making it highly versatile for different electric bike models.
• [HIGH VISIBILITY LCD DISPLAY] - Features a clear LCD screen that displays key vehicle data such as speed, mileage, and battery status, allowing you to monitor your ride in real time for enhanced safety and convenience.
• [TEMPERATURE RESISTANT CONSTRUCTION] - Made with robust ABS material and high-temperature resistant wiring, this ebike display performs reliably between -20°C and 60°C, adapting to various riding conditions.
• [NICE FIT & EASY SETUP] - The display diameter of 2.2 cm fits most handlebars, and the straightforward wiring instructions make sure a smooth installation process.
