SEAFLO Electric Field Bilge Switch - 12V/24V, 20A at 12V or 10A at 24V, Automatic Water Level Sensor Switch, No Float, Solid State Bilge Pump Switch, Marine Boat, SFBS-20-06, 4-Year Warranty
$36.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by absolutely-unterhaltsam.club
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$36.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by absolutely-unterhaltsam.club
Free 30-day returns Details
Product details
| Management number | 221649728 | Release Date | 2026/05/03 | List Price | $14.80 | Model Number | 221649728 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

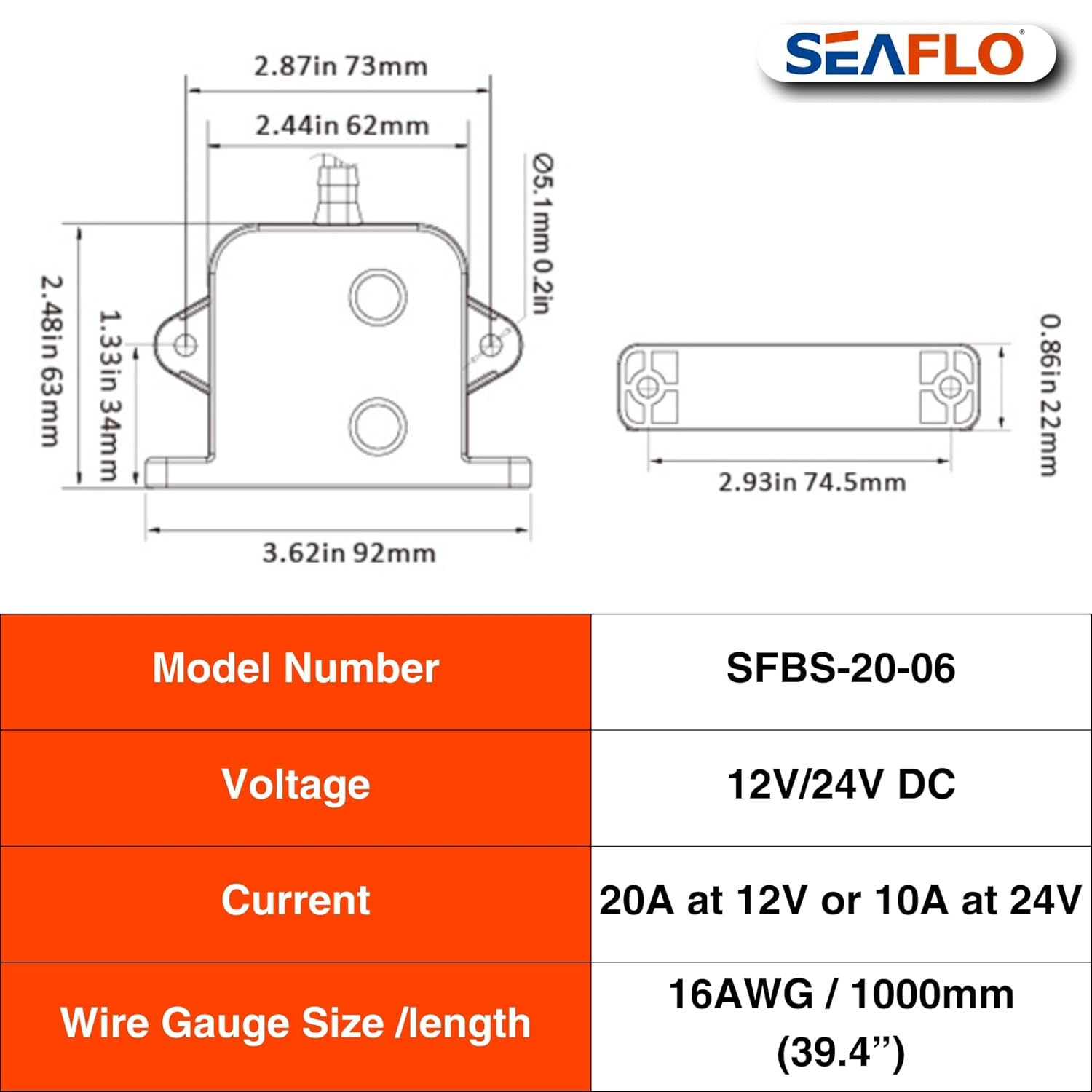

- [ SPECIFICATIONS ]: Model SFBS-20-06 | electric field bilge switch rated for 12V / 24V systems | supports up to 20A at 12V or 10A at 24V | includes 16AWG wire leads measuring 39 inches 1000 mm | designed for automatic bilge pump control in marine environments
- [ 4 YEAR WARRANTY PROTECTION ]: Backed by SEAFLO’s industry leading 4 Year Warranty this bilge switch delivers long term reliability and dependable automatic pump control for marine boating applications and bilge water management systems
- [ SOLID STATE SENSOR TECHNOLOGY ]: Advanced electric field sensing detects water presence without moving parts eliminating mechanical failure points and ensuring consistent automatic activation and shutdown of your bilge pump system
- [ PRECISE WATER LEVEL CONTROL ]: Activates at 1.6 inches 41 mm of water and shuts off at 0.37 inches 9.5 mm providing accurate bilge water management and preventing unnecessary pump cycling or dry running conditions
- [ FALSE START PROTECTION ]: Built in 3 second delay prevents pump activation from water sloshing or turbulence ensuring stable operation and reducing unnecessary wear on your bilge pump and electrical system
- [ CORROSION RESISTANT DESIGN ]: Fully sealed electronics with no exposed sensors reduce corrosion risk in harsh marine environments improving longevity and maintaining reliable operation over extended use
- [ FLEXIBLE INSTALLATION OPTIONS ]: Compact design allows mounting on vertical or horizontal surfaces such as bulkheads or hull interiors providing versatile installation in tight or confined bilge spaces
- [ AUTOMATIC BILGE CONTROL ]: Enables unattended bilge water removal by automatically turning the pump on and off based on water levels ensuring safety and protection even when the vessel is not occupied
| UPC | 810039492147 810039492116 |
|---|---|
| Color | Black |
| Model | SFBS-20-06 |
| Wattage | 240 watts |
| Terminal | Through Hole |
| Brand Name | SEAFLO |
| Unit Count | 1.0 Count |
| Item Weight | 0.2 Pounds |
| Part Number | SFBS-030-07 |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | SEAFLO |
| Material Type | Polypropylene |
| Mounting Type | Surface Mount |
| Connector Type | Crimp |
| Control Method | Touch |
| Current Rating | 20 Amps |
| Item Type Name | Electronic Field Bilge Switch |
| Operation Mode | automatic |
| Item Dimensions | 3.62 x 0.86 x 2.48 inches |
| Contact Material | Metal |
| Operating Voltage | 12 Volts |
| Included Components | Electronic Field Bilge Switch |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Global Trade Identification Number | 00810039492147 |
