Combiner Box for Solar Panels Pv Combiner Box Solar Combiner Box with 6 String 15A Rated Current Fuse Surge Protective Device and 63A Air Circuit Breaker for On/Off Grid Solar Panel System
Product details
| Management number | 225914595 | Release Date | 2026/05/09 | List Price | $43.98 | Model Number | 225914595 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 1.HIGH QUALITY: The combiner box for solar panels is made of high quality electrical configuration with multi-functionality: first-class combination of PV array inputs, fast circuit cut-off, lightning protection, reverse direction protection, overload and more. Professional PV combiner box for your PV on/off grid solar power system. This makes your solar panel system work reliably and safely

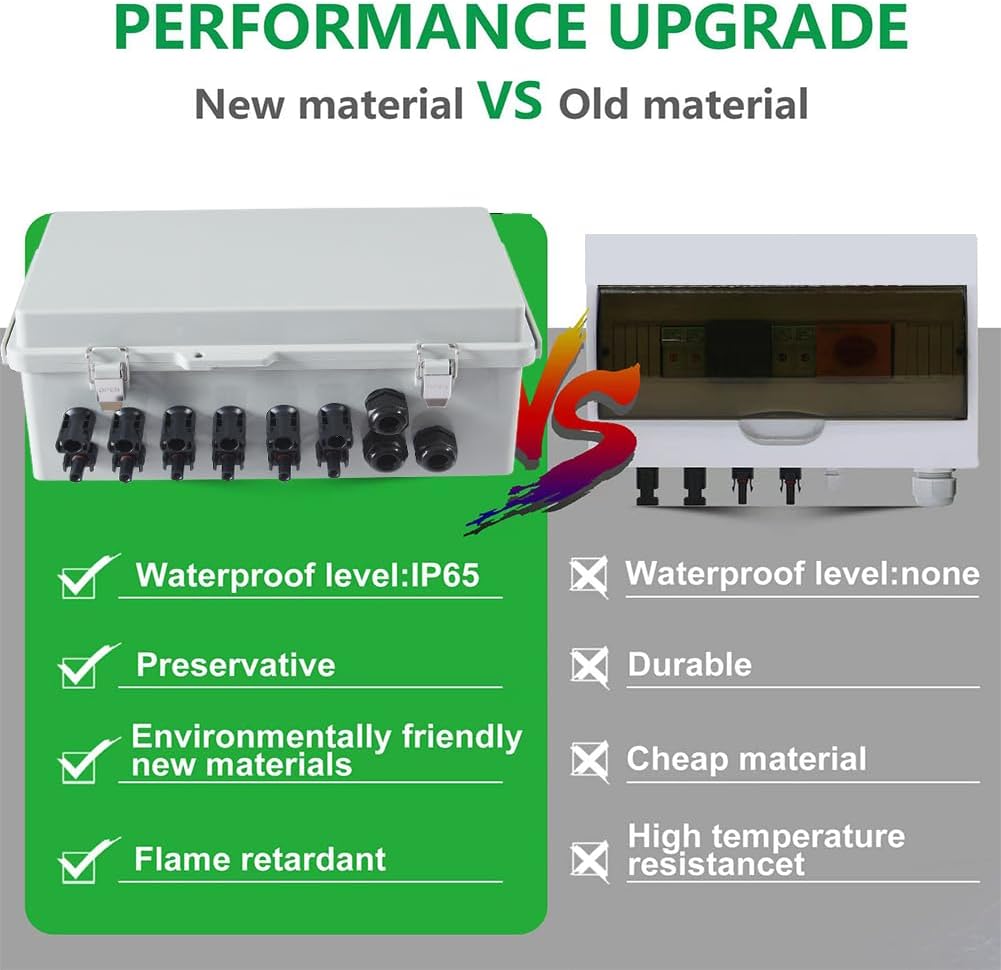

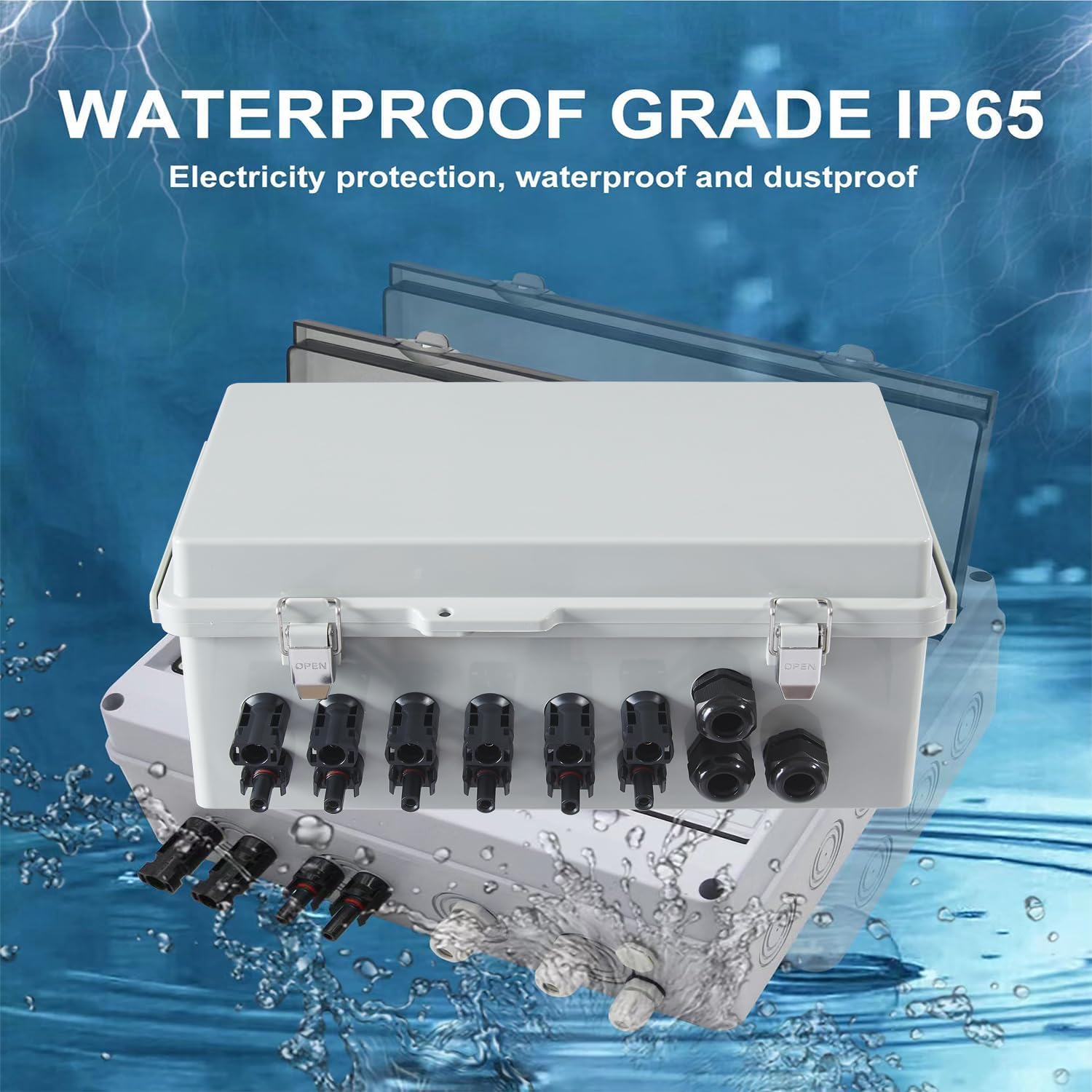

- 2.SAFETY AND DURABLE: Solar Combiner Box enclosure is made of V0 grade flame retardant material to avoid fire hazards. Our Solar Combiner Box is made of professional wires, the thickened conductive wires are optimized for longer service life, especially for solar energy systems. Built-in ground wire connector is convenient for you to install the ground wire. Please make sure the current and voltage of a single PV array does not exceed 16A/260VDC
- 3.WIDE RANGE OF APPLICATIONS: It can support PV grid-connected/off-grid solar power system, solar panel system, it can support up to 780W solar panel system in 12V system, 1560W in 24V system and 3120W in 48V system

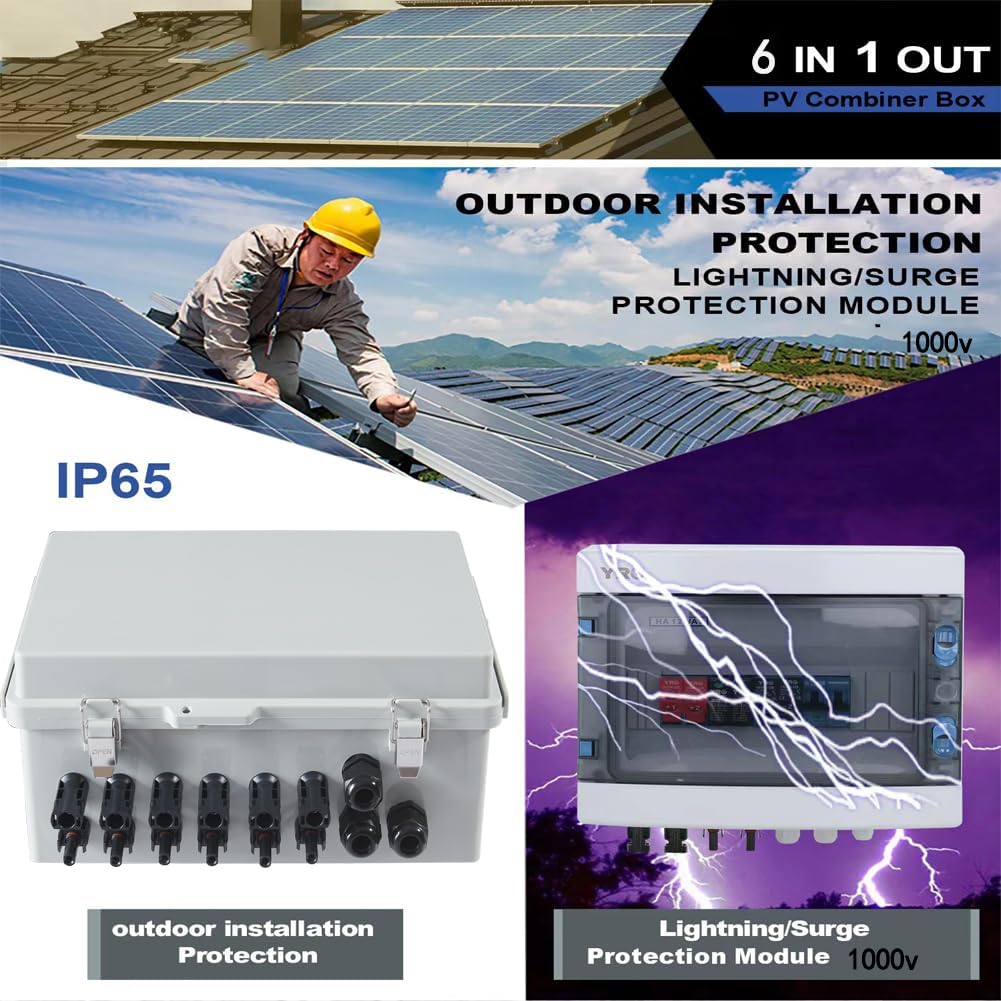

- 4.CONFIGURATION: Built-in six 15A rated fuses with a maximum current of 15A for a single PV input array. they function as overload protection. 1 x 63A air circuit breaker it provides short circuit fault protection and controls the output of the Combiner Box. 1 x surge protector/surge arrester provides lightning protection
- 5.PERFORMANCE:the Combiner Box protects the PV solar panels and the inverter. . In addition, it will reduce the length of cable connections from the panels to the inverter and optimize system commands making the system more useful and easier to maintain. All in all it will enable the PV power system to increase the output power
| UPC | 768415166536 |
|---|---|
| ASIN | B0CBH79B7H |
| Brand Name | QL-LINRUN |
| Phase Type | Single Phase |
| Manufacturer | QL-LINRUN |
| Material Type | Plastic |
| Maximum Current | 15 Amps |
| Number Of Circuits | 6 |
